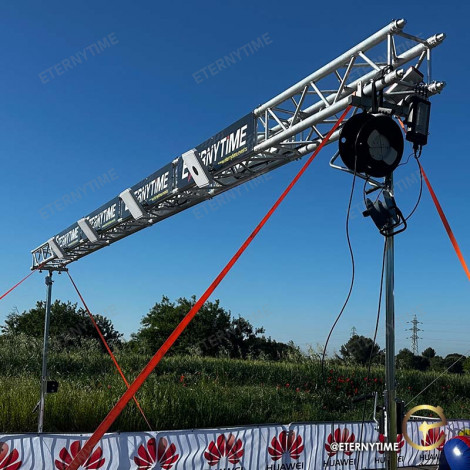

Complete RFID Truss Gate (9 m)
Includes personalized advertising on 4 elements, double-sided print
Digital print on 3 mm aluminum panels (140 x 30 cm) with scratch-resistant coating
Designed to accommodate 4 Chronelec antenna mounts9999
4-Point Truss Structure
6 elements of 1.5 m each
Tube spacing (outer): 29 cm
Main tube diameter: 50 mm
Wall thickness: 2 mm
Braces: 20 mm
Material: AlMgSi F31
Connection system with conical couplers included
Weight: 10 kg per piece
2 Heavy-Duty Tripods
Tripods with hand crank
TÜV Certified
Technical Specifications:
Maximum height: 4.13 m
Minimum height: 1.8 m
Maximum load capacity (centered): 100 kg
Maximum tripod extension: 2.13 m
Weight: 28.8 kg
Transport dimensions: 1.95 m
Truss adapter included
Locking pins and safety clips included
The RFID decoder is recommended mass races such as running, cycling or mountain biking. This system does not allow to have a precise timing (maximum 0.5 s) due to this technology.RFID Antennas are placed on the ground or on the side of the road. RFID transponders are usually placed on the competitors’ bibs. Available with 1 antenna (hill climbing,...
The RFID decoder is recommended mass races such as running, cycling or mountain biking but also Motocross or Enduro (used for the Enduropal du Touquet) This antenna is dediated to mounted on the side on tripods or on a top truss gate.
