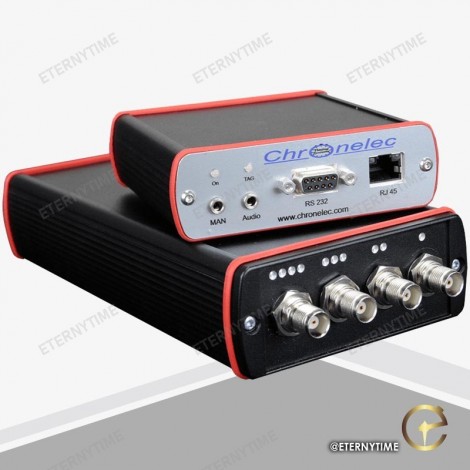

CHRONELEC RFID Decoder system
€2,880.00
Tax included
The RFID decoder is recommended mass races such as running, cycling or mountain biking.
This system does not allow to have a precise timing (maximum 0.5 s) due to this technology.
RFID Antennas are placed on the ground or on the side of the road.
RFID transponders are usually placed on the competitors’ bibs.
Available with 1 antenna (hill climbing, rally racing up to 120 km/h), 2 antennas or 4.
Ground mats (ground antennas) and side antenna sold separately
Features
- Clock stability : Oscillator TCXO 0.5 ppm
- Resolution : 0.001 s
- Temperature range : -20 to 55 °C (-4 to 131 °F)
- Dimensions
Controller : 160 x 105 x 35 mm (6.3 x 4.1 x 1.4 in)
Decoder : 215 x 105 x 43 mm (8.4 x 4.1 x 1.7 in)
Connections
- Power supply 12 VDC
- 1, 2 or 4 antennas sockets (BNC)
- 1 timing impulse (to connect a photocell)
- 1 manual impulse (to simulate a transponder passing)
- 1 audio (beep for each transponder passing)
- 1 RS-232
- 1 Ethernet
CDRFIDx
