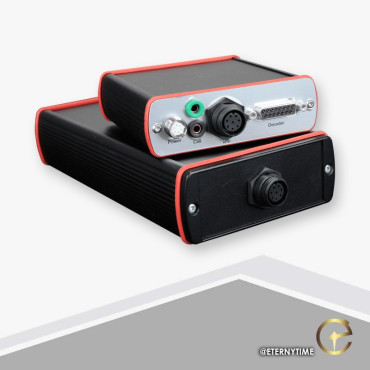

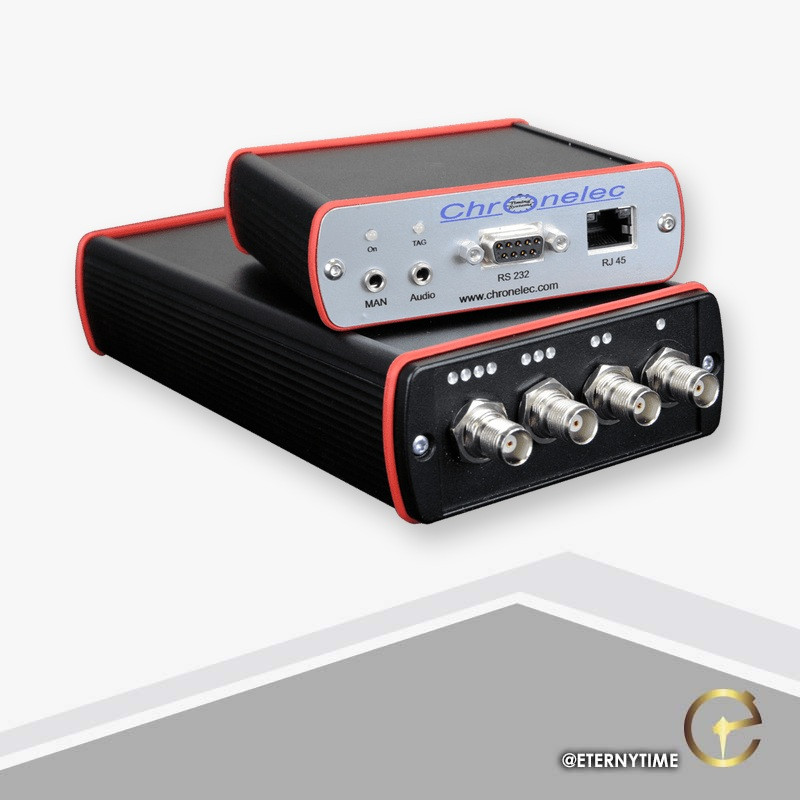

CHRONELEC RFID Decoder with 2 or 4 Inputs

Professional RFID decoder available with 2 or 4 antenna inputs.

Overview

The RFID decoder is recommended for timing mass races such as running, cycling or mountain biking. This system does not allow to have a precise timing (maximum 0.5 s) because of the technology used. RFID Antennas are placed on the ground or on the side of the road. RFID transponder are usually stuck on competitors’ bibs.

Specifications

• Clock stability : Oscillator TCXO 0.5 ppm
• Resolution : 0.001 s
• Temperature range : -20 to 55 °C (-4 to 131 °F)
• Dimensions
• Controller : 160 x 105 x 35 mm (6.3 x 4.1 x 1.4 in)
• Decoder : 215 x 105 x 43 mm (8.4 x 4.1 x 1.7 in)
• Power supply 12 VDC
• 1, 2 or 4 loops
• 1 timing impulse (to connect a photocell)
• 1 manual impulse (to simulate a transponder passing)
• 1 audio (beep for each transponder passing)
• 1 RS-232
• 1 Ethernet
