myWER MCI 330 - USB Timing Decoder
€756.00
Tax included
Compact myWER timing decoder with two opto-isolated USB ports, backlit LCD, accessory connection and an internal backup battery providing up to 20 minutes of operation. No activation or annual subscription required.
The myWER MCI 330 is a compact and intuitive timing decoder designed to transmit detection-system data to a computer in real time via USB.

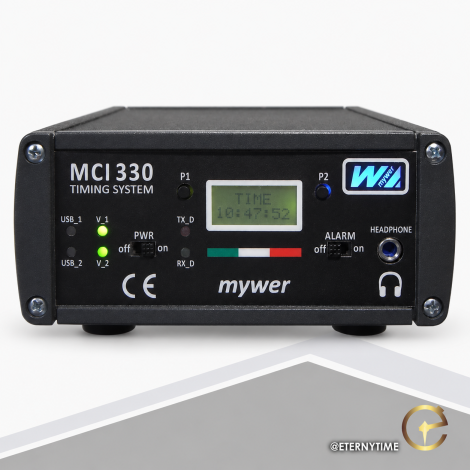

Its comprehensive front panel combines practical controls and function keys, six status indicators, a multifunction backlit LCD for diagnostics and setup, and a stereo headphone output. The rear panel provides two opto-isolated USB ports, an RJ9 connector for accessory modules and a jack input for timing equipment and a manual passage button.
An internal rechargeable battery keeps the system operating for up to 20 minutes in the event of a power failure. The MCI 330 can be powered by its external adapter or any 10 to 15 VDC source.
No activation or annual subscription is required.
Highlights
- Two opto-isolated USB interfaces
- Backlit LCD for diagnostics and setup
- Six status LEDs
- Optional RJ9 accessory port
- Input for manual passage button and synchroniser
- Stereo headphone output
- Up to 20 minutes of battery backup
- Compatible with many timing management applications
Technical data
| Power / consumption | 10 to 15 VDC, 4 W maximum |
|---|---|
| Status indication | 6 LEDs and backlit LCD |
| Interfaces | 2 opto-isolated USB ports and 1 optional accessory-module port |
| Input | 3.5 mm jack for manual passage button and synchroniser |
| Output | 3.5 mm stereo headphone jack |
| Internal UPS | Replaceable 7.2 V / 700 mAh rechargeable Ni-MH battery, 20 min backup |
| Dimensions | 105 × 145 × 50 mm |
| Weight | 450 g |
| Operating temperature | 0 to +45 °C |
| Protection rating | IP41 |
| Warranty | 5 years, batteries excluded |
