myWER MCD 430 U / E W/R - Single-Loop Decoder
€1,428.00
Tax included
myWER single-loop decoder for W/R transponders, available as the U version with USB transmission or the E version with 10/100 LAN and USB. Supports two photocells, includes battery backup and requires no annual subscription.
MCD 430 U W/R version - USB
The myWER MCD 430 U W/R is a compact single-loop decoder designed for indoor installation or protected environments. The detection-loop coaxial cable connects directly to the decoder, which receives, decodes and processes signals from compatible transponders such as the myWER MTP 030, then sends the data in real time to the connected computer.
Its aluminium enclosure combines a backlit diagnostic and setup LCD, direct controls, status indicators, a stereo headphone output and the connections required for professional timing. The MCD 430 U can also manage up to two photocells independently.
No activation or annual subscription is required.
Applications
An economical solution for kart rental tracks and professional timing services: motocross, enduro, go-karting, motorcycle and car racing, snowcross and other motorsport disciplines.
Highlights
- Detects up to 14 transponders simultaneously
- Unlimited number of managed transponders
- 10-level electronic antenna sensitivity adjustment
- Up to 250 addressable nodes
- Independent management of two photocells
- Up to 15 minutes of battery backup
- W and R versions for different track widths
Technical data
| Power / consumption | 12 to 14 VDC, 4 W maximum |
|---|---|
| Status indication | 7 LEDs and backlit LCD |
| Interference indication | 1 dedicated LED |
| Clock | Calibratable 0.5 ppm TCXO |
| Maximum track width | W version: 20 m; R version: 12 m |
| Maximum detection height | W version: 200 cm; R version: 150 cm |
| Interfaces | 2 opto-isolated USB ports and 1 optional accessory port |
| Input | 3.5 mm jack for manual passage button and synchroniser |
| Output | 3.5 mm stereo headphone jack |
| Internal UPS | Replaceable 9.6 V / 500 mAh rechargeable Ni-MH battery, 15 min backup |
| Dimensions | 165 × 110 × 55 mm |
| Weight | 600 g |
| Operating temperature | 0 to +45 °C |
| Protection rating | IP41 |
| Warranty | 3 years, batteries excluded |
MCD 430 E W/R version - Ethernet and USB

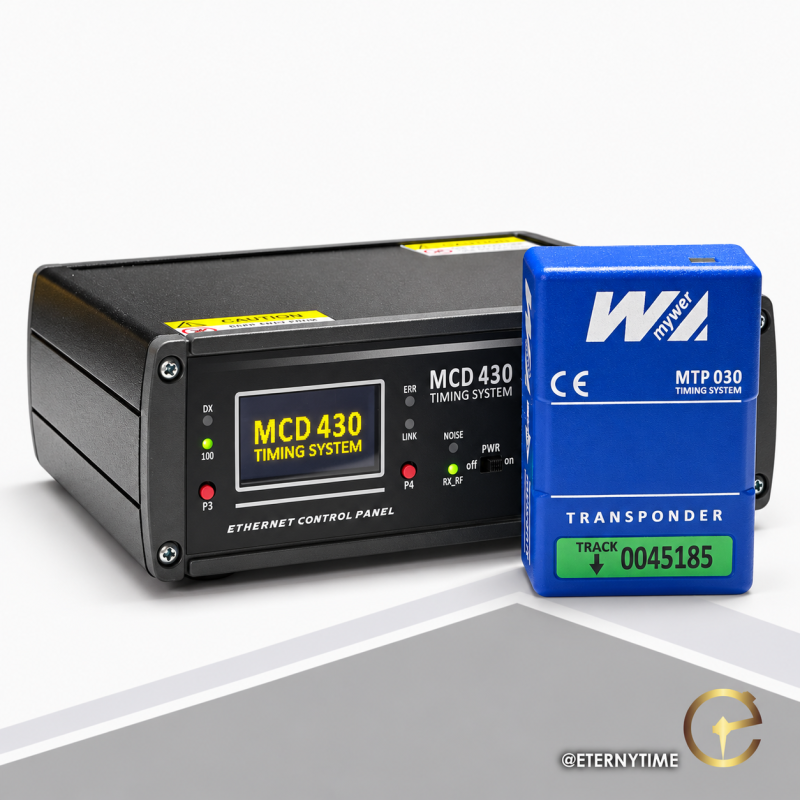

The myWER MCD 430 E W/R is an advanced single-loop decoder designed for indoor installation or protected environments. The detection-loop coaxial cable connects directly to the decoder, which receives, decodes and processes signals from compatible transponders such as the myWER MTP 030, then sends the data in real time to a computer via LAN or USB.

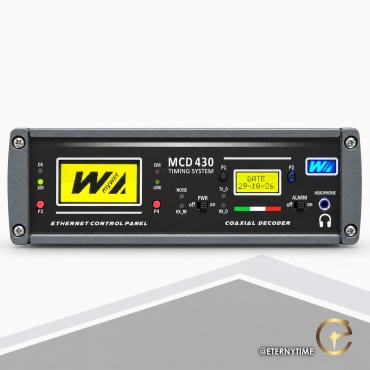

Its compact aluminium enclosure features direct controls, seven status LEDs, a multifunction backlit LCD for diagnostics and setup, and a dedicated OLED display for TCP/IP settings. A stereo headphone output makes detection monitoring easy. The MCD 430 E can also manage up to two photocells independently.

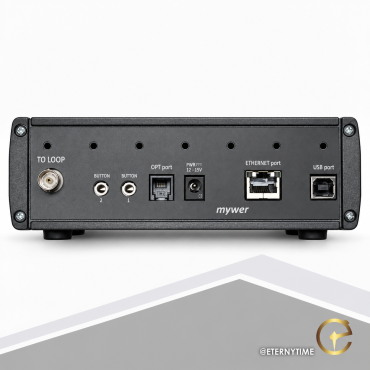

The rear panel provides a 10/100 LAN connection with DHCP support, a USB interface, an RJ9 connector for optional accessories and two jack inputs for manual passage buttons.
No activation or annual subscription is required.
Applications
An economical professional solution for kart rental tracks, timing services and many motorsport disciplines: motocross, enduro, go-karting, motorcycle and car racing, snowcross and other competitions.
Highlights
- Real-time transmission via 10/100 LAN or USB
- TCP/IP setup with OLED display and two dedicated buttons
- Up to four simultaneous network connections
- Detects up to 14 transponders simultaneously
- Unlimited total number of managed transponders
- 10-level electronic antenna sensitivity adjustment
- Up to 250 addressable nodes
- Independent management of two photocells
- Up to 10 minutes of battery backup
- W and R versions for different track widths
Technical data
| Power / consumption | 12 to 14 VDC, 4 W maximum |
|---|---|
| Status indication | 7 LEDs, 1 OLED display and 1 backlit LCD |
| TCP/IP setup | 2 buttons |
| Network | 10/100 Mbit LAN, DHCP, 4 simultaneous connections, proprietary myWER protocol over TCP/IP |
| Interfaces | Opto-isolated USB and 1 optional accessory-module port |
| Interference indication | 1 dedicated LED |
| Clock | Calibratable 0.5 ppm TCXO |
| Maximum track width | W version: 20 m; R version: 12 m with W/R transponders |
| Simultaneous transponders | 14 maximum; unlimited total number managed |
| Maximum detection height | W version: 200 cm; R version: 150 cm with W/R transponders |
| Antenna sensitivity | 10-level electronic adjustment |
| Addressing | 250 nodes |
| Inputs | 3.5 mm jack for manual passage button and synchroniser |
| Output | 3.5 mm stereo headphone jack |
| Internal UPS | Replaceable 9.6 V / 500 mAh rechargeable Ni-MH battery, 10 min backup |
| Dimensions | 165 × 110 × 55 mm |
| Weight | 600 g |
| Operating temperature | 0 to +45 °C |
| Protection rating | IP41 |
| Warranty | 3 years, batteries excluded |
